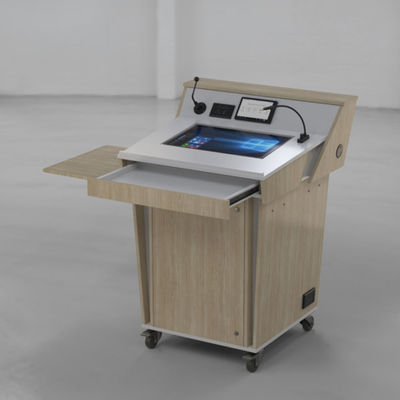

C-Series Single Bay Lecterns
The C-Series single bay lectern is a one door wide lectern with pull out keyboard drawer and angled data panel to house touch screens, power/data points etc.
The top has been designed so that the angled “data panel” and work surface can be made at any angle, allowing for flexibility in touch panel sizes.
C-Series Single bay lecterns come standard with RU rack stripping, lockable/ removable hinged door and service panel.
C-Series internal width is correct for 19inch rack stripping and has panels for fixing of cables at the rear.
Dimension X in the following drawings can be changed to suit the various size touch panels or power/data points you plan to use (affects lectern overall height)
C-Series single bay lecterns come fully assembled.
Options
Popular Options available to order with your C-Series Single bay lectern.
External Shelves
( BG05 )
Mic/Shockmount
( BG-M1 & BG-SH )
Control Panel Cut-outs
( BG10 )
LED Light
( BG-LED-CS )
Cable pass grommet
( BG-Cable-G )
Monitor set into worktop*
( BG06 or BG06-N )
Keyboard Drawer
( Comes Standard )
( BG-HANDLE )
Handle
Door Cut-outs
( BG08-D )
GPO size Cut-outs
( BG09 )
Swivel castor wheel base
(BG-HDW4 )
* Monitor is not included - user supplied

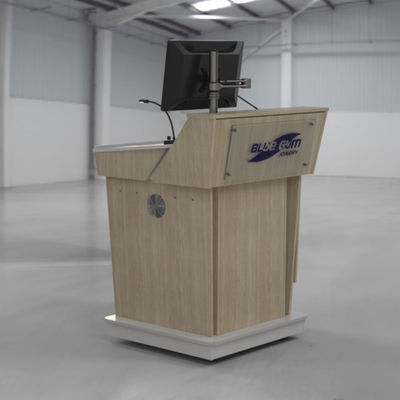

Monitor Pole
( BG-SP-AA-B )
Option for Angled or Flat worktop
Perspex Logo
(Customised to your spec)
( BG-P-L )
Fan with transformer
( BG-120F-INST )
Castor wheels behind kickboards
( BG-HDW4-K )
C-Series Lecterns can be fully customised to suit your requirements. Contact us to discuss your needs
Order Codes and specifications
BGL-TM01A
Single bay with Angled work surface
-
Internal height: 712mm (16ru)
-
Internal width: Suits 19inch rack strip
-
Internal depth: 600mm - See drawing to right for rack strip positions
-
Worksurface height (to lowest edge): 947mm - Can vary depending on angles
-
Dimension X on drawing to the right can be modified to suit your equipment.
Overall Dimensions: 1152mm high * 875mm wide * 840mm deep
BGL-TM01F
Single bay with Flat work surface
-
Internal height: 712mm (16ru)
-
Internal width: Suits 19inch rack strip
-
Internal depth: 600mm - See drawing to right for rack strip positions
-
Worksurface height (to lowest edge): 947mm - Can vary depending on angles
-
Dimension X on drawing to the right can be modified to suit your equipment.
Overall Dimensions: 1152mm high * 875mm wide * 840mm deep
Colours
We can build your C-Series single-bay lectern in any available melamine board colour from all board suppliers.
Our standard pricing is worked out based on melamine board; however, we can build your C-series lectern in custom finishes such as polyurethane paint or natural veneers.
Please contact us if you would like to discuss colour and finish options.
