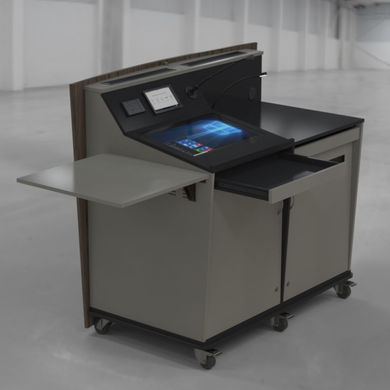

D-Series Double Bay Lecterns
The D-Series double bay lectern is a two-door wide lectern with angled data panel where touch screens, power/data points etc, can be mounted. Internals are also large enough to house an AV rack frame.
The lectern top has been designed so that the angled “data panel” and work surface can be made at any angle, allowing for the fitment of various sized components.
D-Series double bay lecterns come standard with two adjustable/removable internal shelves, lockable/ removable hinged door and service panel.
The overall height and width are fixed as standard.
Options
Popular Options available to order with your D-Series double bay lectern.
External Shelves
( BG05 )
Cable pass grommet
( BG-Cable-G )
Mic/Shockmount
( BG-M1 & BG-SH )
Control Panel Cut-outs
( BG10 )
LED Light
( BG-LED-CS )
Monitor set into worktop*
( BG06 or BG06-N )
Keyboard Drawer
( BG-D )
( BG-HANDLE )
Handle
Swivel castor
wheel base
(BG-HDW4 )
* Monitor is not included - user supplied
Door Cut-outs
( BG08-D )
GPO size Cut-outs
( BG09 )
Monitor Pole
( BG-SP-AA-B )
Fan with transformer
( BG-120F-INST )
Perspex Logo
(Customised to your spec)
( BG-P-L )
Blue Gum Joinery Aluminium Rack Frames
D-Series Lecterns can be fully customised to suit your requirements. Contact us to discuss your needs
Order Codes and specifications
BGL-RNM02A
Double bay - Angled work surface
-
Internal height (without optional keyboard drawer): 770mm (17ru)
-
Internal height (With optional keyboard drawer): 690mm (15ru)
-
Internal width: 596mm
-
Internal depth: 653mm
-
Worksurface height (to lowest edge): 910mm
Overall Dimensions: 1190mm high * 1375mm wide * 795mm deep
BGL-RNM02F
Double bay - Flat work surface
-
Internal height (without optional keyboard drawer): 770mm (17ru)
-
Internal height (With optional keyboard drawer): 690mm (15ru)
-
Internal width: 596mm
-
Internal depth: 653mm
-
Worksurface height: 910mm
Overall Dimensions: 1190mm high * 1375mm wide * 795mm deep
BGL-RNM02RA
Double bay - RIGHT Hand angled work surface
-
Internal height (without optional keyboard drawer): 770mm (17ru)
-
Internal height (With optional keyboard drawer): 690mm (15ru)
-
Internal width: 596mm
-
Internal depth: 653mm
-
Worksurface height (to lowest edge): 910mm
Overall Dimensions: 1190mm high * 1375mm wide * 795mm deep
BGL-RNM02LA
Double bay - LEFT Hand angled work surface
-
Internal height (without optional keyboard drawer): 770mm (17ru)
-
Internal height (With optional keyboard drawer): 690mm (15ru)
-
Internal width: 596mm
-
Internal depth: 653mm
-
Worksurface height: 910mm
Overall Dimensions: 1190mm high * 1375mm wide * 795mm deep
Colours
We can build your D-Series double-bay lectern in any available melamine board colour from all board suppliers.
Our standard pricing is worked out based on melamine board; however, we can build your D-series lectern in custom finishes such as polyurethane paint or natural veneers.
Please contact us if you would like to discuss colour and finish options.
